KST-SL02 Track Linear Actuator, Automatic Window Opener For Sliding Windows, DC 24V

SKU KST-SL02-DC24
$109.00
Electric Sliding Window Opener / Need additional window control unit
Stroke Length
Please choose
Window Opening Direction
Please choose
Window Control Units
Please choose
Estimated delivery time
Shipping: 13–26 days
In stock
1
Save this product for later
Share this product with your friends
KST-SL02 Track Linear Actuator, Automatic Window Opener For Sliding Windows, DC 24V
Product Details
Brand: Soon Industrial
Window Type: Sliding Windows
RF Remote: Need additional RF actuator controller

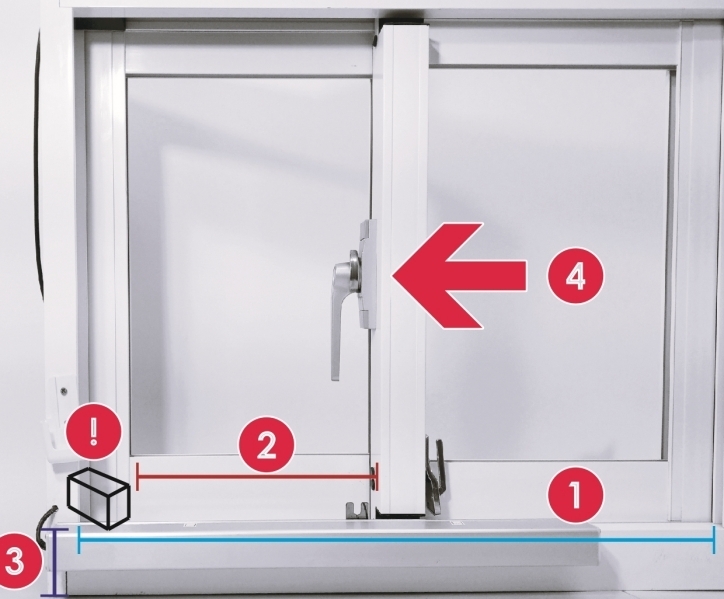

CHECK POINTS


POINT 1 Space for installation > (Stroke Length + 180) mm

POINT 2 Opening Range > Stroke Length (mm)

POINT 3 Wiring Space > 50 mm (opposite to the window opening side)

POINT 4 Window Open on the RIGHT or LEFT

OR You can mail us window photos and dimension. We can help you with selecting the right products. soonkst@soonkst.com


Features

  • The motor drive is 24 VDC for operating a series of KST-SL02 Actuators ( Window Openers ) TOGETHER.
  • The maximum force is 20 kgf, which could pull/ push heavy mechanism or large-scale sliding windows.
  • DIY KIT for track motion devices or upgrading sliding windows/ hung windows to Electric Windows.
  • The package is with special Connecting Brackets for quickly switching between manual and automatic mode.
  • The spindle in KST-SL02 Linear Actuator was made by aluminum alloy with a surface hardening and anti-oxidation treatment.
  • Both ends are with built-in LIMITED SWITCH. When the product comes to the endpoint, the electricity will cut off automatically.
  • ※Beware of any obstacles on the track or your mechanism Also, there should be ENOUGH SPACE of the moving range on the device or sliding windows.
  • Special mounting brackets are included.

Working Videos

1. Product working video of KST-SL02 Actuator

2. A Residential Case Of Automatic Sliding Window With KST-SL02 Window Openers



Specs
  • Stroke length(optional): 400mm/ 500mm/ 600mm/ 700mm
  • Voltage: 24 VDC
  • Materials: Anodised aluminum, aluminum alloy with surface hardening and anti-oxidation treatment
  • Maximum dynamic load: 200 N/ 20 kgs/ 44 lbs
  • Minimum installation dimension: stroke + 180 mm/ stroke + 7.1 inches
  • Voltage/ Current: 24 VDC / 0.6A to 1.3A
  • Travel speed:18mm/sec ( no load )
  • IP rating: IP32
  • Noise level: 48dB ( no load )
  • Color: silver gray ( standard )

Choose Right Specs And Accessories For Your Applications

  • OPTION 1 Stroke length(travel length) of inner tube: 400mm/ 500mm/ 600mm/ 700mm
  • OPTION 2 Window Opening Direction: Right opening/ Left opening
  • OPTION 3 Actuator Controller, please refer to Actuator controllers list page on our website:
    1. KST-B861-R-72W: 72W, 24VDC output, 100V to 230VAC input, remote control. Max support for 1 to 2 pcs of KST-SL02 Actuators.
    2. If you need to control many electric actuators at one time, please purchase KST-B1 Actuator Controllers separately.

! Before Placing Order !

  • There're more details and cases of application on our website. Please check https://www.soonkst.com for more information.
  • Please confirm the available quantity, lead time, shipping method, and application before placing an order.
  • We are welcoming any questions about our products or linear actuator applications. Customers could consult with us for more compatible SPECs.
  • Our email: soonkst@soonkst.com . We will get back to you within 24 hours.

!Returns And Complaints !

  • Any complaints referring to either the quantity or the quality of the delivered products must be made within 8 (eight) days after receiving the products.
  • Returns made as a result of Soon Industrial Co., Ltd. error will be accepted at our discretion. Soon Industrial Co., Ltd. will provide 1 TO 1 COMPLAINT for customers or make a deduction on the next order.
  • Returns are made as a result of customers, including ordered wrong specifications, quantity, style, etc. After noticing and accept by Soon Industrial Co., Ltd, the customer shall deliver back the products within 8 (eight) days after receiving the package. The returning should be well re-packaged with all assemblies, unused, no defects. Soon Industrial Co., Ltd. will make a refund after receiving and inspecting the returned products. There will be a 30% restock charge on customers.

!Warranty !

  1. The Warranty is limited to the repair or replacement of product parts that Soon Industrial Co., Ltd. acknowledges as defective through equivalent re-manufactured Products.
  2. The Warranty for KST Series Electric Actuators and Actuator Controllers are 12 (twelve) months from the day of dispatch.
  3. The Warranty does not cover the following situations:
    1. Defects caused by fair wear and tear;
    2. Inadequate or abnormal use;
    3. Damage caused by carriers;
    4. Installed our products on defeats windows or electrical system;
    5. The carelessness of workman or customer;
    6. Incorrect use or installation;
    7. The use of non-original spare parts, actuators, and controllers.
  4. The customer shall do the product/ system maintenance at least every SIX months.
  5. Implementation terms: If customer finds out any defect which is not caused by the situation from Clause 3. & 4. Customers shall exercise their rights within 14 days after finding out the defect. And providing evidence of defect by videos, photos, or other methods and showing the copy of the purchase document/ invoice to Soon Industrial Co., Ltd. through email (soonkst@soonkst.com) or letter (1F., No.239, Sec. 1, Defang Rd., Dali Dist., Taichung City 412, Taiwan ). After accepted and confirm by Soon Industrial Co., Ltd., we will send new complaints to customers.
  6. The Warranty does not include indirect damage, loss of profits, loss of productions, people injury, or death resulting from negligence.
